Description

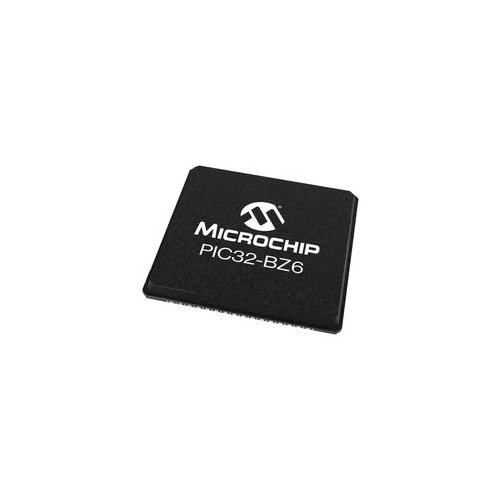

PIC32CX2051BZ62132-I/3WW is a multiprotocol, wireless microcontroller SoC that provides exceptional scalability, flexible connectivity and versatile peripherals.

Features

128MHz ARM cortex MCU with 2MB flash, 512KB RAM and grade-1 automotive qualification
Dual CAN-FD, Ethernet, USB, SERCOMs, QSPI and up to 54 configurable GPIO interfaces
High-speed 2 x12-bit ADCs, 1 x 7-bit DAC, QEI motor control and CVD touch sensing support
Secure boot, AES/SHA/RSA/ECC accelerators and TRNG for advanced embedded security
Bluetooth 6.0 certified radio with +11dBm TX power and -109dBm RX sensitivity
Supports 802.15.4, thread and proprietary protocols with hardware coexistence
Enables secure, reliable over-the-air updates with robust radio security features
Bluetooth 6.0 security: encrypted ads, coding selection and GATT security levels
Supports LE 2M, LE coded PHY, power control, multilink and multirole operation
Available in 132 pin DQFN package, operating temperature range from -40 to 85°C

Specifications

Key	Description
Operating Frequency Max	128 MHz
Program Memory Size	2 MB
IC Case / Package	DQFN
Device Core	ARM Cortex-M4F
MCU Series	PIC32CX-BZ6
Supply Voltage Min	1.9 V
Operating Temperature Min	-40 °C
MCU Family	PIC32
No. of Pins	132 Pins
Data Bus Width	32 bit
ADC Resolution	12Bit
No. of I/O's	54 I/O's
Product Range	PIC32 Family PIC32CX-BZ6 Series Microcontrollers
IC Mounting	Surface Mount
Qualification	AEC-Q100
Supply Voltage Max	3.6 V
RAM Memory Size	512 KB
ADC Channels	19 Channels
Interfaces	CAN-FD, QEI, QSPI, USB
Operating Temperature Max	85 °C

More Details

Parameter	Value
Product Name	PIC32CX2051BZ62132-I/3WW - ARM MCU, PIC32 Family PIC32CX-BZ6 Series Microcontrollers, ARM Cortex-M4F, 32 bit, 128 MHz, 2 MB
Manufacturer / Brand	MICROCHIP
MPN	PIC32CX2051BZ62132-I/3WW
RoHS	YES
Country of Origin	CN
Hazardous	false

PIC32CX2051BZ62132-I/3WW - ARM MCU, PIC32 Family PIC32CX-BZ6 Series Microcontrollers, ARM Cortex-M4F, 32 bit, 128 MHz, 2 MB

Name: PIC32CX2051BZ62132-I/3WW - ARM MCU, PIC32 Family PIC32CX-BZ6 Series Microcontrollers, ARM Cortex-M4F, 32 bit, 128 MHz, 2 MB
Brand: MICROCHIP
SKU: ILK-8363
Price: 456.60 INR
Availability: InStock

See 0 Ratings & Reviews |

Stock: 168

MICROCHIP

MPN: PIC32CX2051BZ62132-I/3WW

SKU: ILK-8363

₹ 456.60 (inc GST)

Description

PIC32CX2051BZ62132-I/3WW is a multiprotocol, wireless microcontroller SoC that provides exceptional scalability, flexible connectivity and versatile peripherals.

Features

128MHz ARM cortex MCU with 2MB flash, 512KB RAM and grade-1 automotive qualification
Dual CAN-FD, Ethernet, USB, SERCOMs, QSPI and up to 54 configurable GPIO interfaces
High-speed 2 x12-bit ADCs, 1 x 7-bit DAC, QEI motor control and CVD touch sensing support
Secure boot, AES/SHA/RSA/ECC accelerators and TRNG for advanced embedded security
Bluetooth 6.0 certified radio with +11dBm TX power and -109dBm RX sensitivity
Supports 802.15.4, thread and proprietary protocols with hardware coexistence
Enables secure, reliable over-the-air updates with robust radio security features
Bluetooth 6.0 security: encrypted ads, coding selection and GATT security levels
Supports LE 2M, LE coded PHY, power control, multilink and multirole operation
Available in 132 pin DQFN package, operating temperature range from -40 to 85°C

Specifications

Key	Description
Operating Frequency Max	128 MHz
Program Memory Size	2 MB
IC Case / Package	DQFN
Device Core	ARM Cortex-M4F
MCU Series	PIC32CX-BZ6
Supply Voltage Min	1.9 V
Operating Temperature Min	-40 °C
MCU Family	PIC32
No. of Pins	132 Pins
Data Bus Width	32 bit
ADC Resolution	12Bit
No. of I/O's	54 I/O's
Product Range	PIC32 Family PIC32CX-BZ6 Series Microcontrollers
IC Mounting	Surface Mount
Qualification	AEC-Q100
Supply Voltage Max	3.6 V
RAM Memory Size	512 KB
ADC Channels	19 Channels
Interfaces	CAN-FD, QEI, QSPI, USB
Operating Temperature Max	85 °C

More Details

Parameter	Value
Product Name	PIC32CX2051BZ62132-I/3WW - ARM MCU, PIC32 Family PIC32CX-BZ6 Series Microcontrollers, ARM Cortex-M4F, 32 bit, 128 MHz, 2 MB
Manufacturer / Brand	MICROCHIP
MPN	PIC32CX2051BZ62132-I/3WW
RoHS	YES
Country of Origin	CN
Hazardous	false
